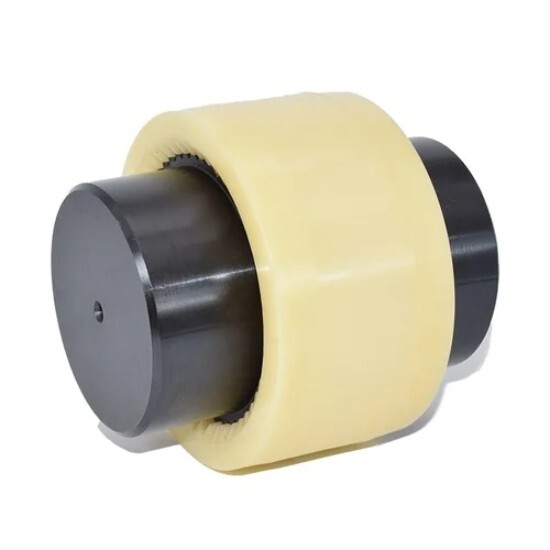

Nylon Coupling

Name: Nylon Coupling
Brand: SUPER MECH INDUSTRIES
Price: 120.0 INR
Availability: InStock

Price 120.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Nylon Coupling Specification

Bore
Customizable as per shaft size

Connection
Clamp or set screw

Torque
Varies by size, generally up to 800 Nm

Head Code
Round

Sealing
Nil/Non-sealing

Max. Speed
Up to 6000 RPM

Material
Nylon (polyamide) sleeve, steel/metal hubs

Structure
Flexible sleeve type

Standard
DIN/ISO Standard (depending on manufacturer)

Inner Diameter
Available from 8mm up to 120mm (varies by model)

Outer Diameter
Varies with model/type, typically 50mm to 250mm

Application
Power transmission, machinery coupling, industrial drives

Surface Treatment
Smooth/Raw finish

Technique
Machined/Injection molded

Shape
Cylindrical with flanged hubs

Maintenance
Maintenance-free, lubrication not required

Weight
Ranging from 0.25 kg to 6 kg depending on size

Damping Capability
Good resistance to vibration and shock

Alignment Tolerance
Axial: 1 mm, Angular: 0.5

Electrical Insulation
Provides electrical insulation between coupled shafts

Color
Cream/Black

Noise Reduction
Low operational noise

Temperature Range
-30C to +80C

Corrosion Resistance
High, due to nylon sleeve

Nylon Coupling Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
20 Pieces Per Day

Delivery Time
3 Days

Packaging Details
2% EXTRA

Main Domestic Market
All India

Certifications
ISO

About Nylon Coupling

Specification

Weight	1.20 Kg
Usage/Application	Industrial
Brand	SMI
Packaging Type	Bag
Color	YELLOW
Size	3/4 inch,1/2 inch,2 inch
Type	Gear Type

Size	1 inch
Usage/Application	Industrial
Material	Nylon
Surface Treatment	Polished
Shape	Round
Application	Mechanical Industry

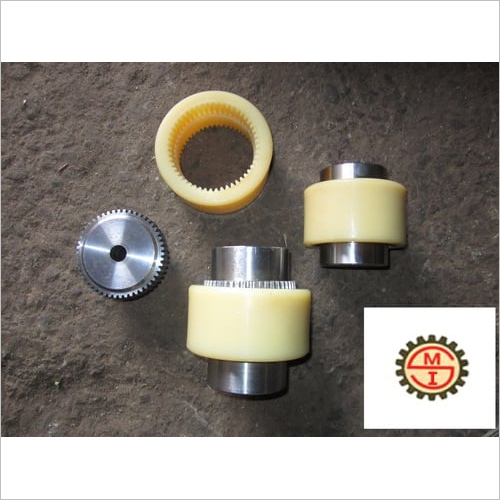

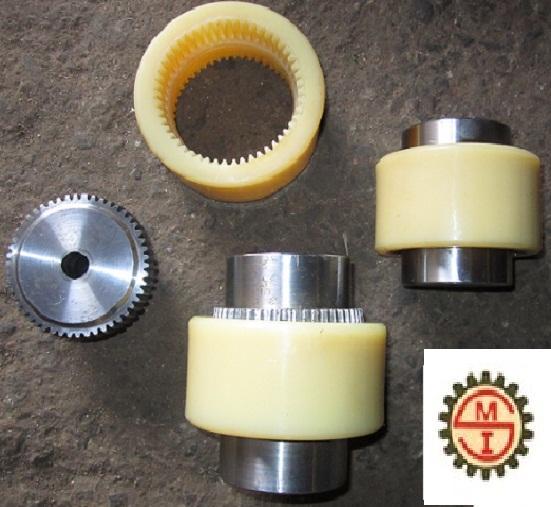

Being one of the preferred choices of our customers. we are involved in trading of Nylon Sleeve Gear Coupling. Manufactured from optimum quality nylon at our vendors end these lightweight and durable accessories are extremely popular among our clients. These are used in motor or generator sets and motor or pump sets

Technical Details

Superior Nylon Coupling Technology

Engineered using high-grade steel and nylon components, our couplings ensure robust mechanical strength and excellent vibration damping. The flexible sleeve design aids in compensating misalignments and provides enduring performance even at elevated rotational speeds.

Seamless Installation and Versatility

With customizable bore sizes and connection options like clamp or set screw, these couplings adapt easily to different shaft requirements. Their maintenance-free nature means no lubrication is necessary, minimizing downtime and facilitating trouble-free operation in machinery and industrial drives.

Unrivaled Reliability and Protection

High corrosion resistance, smooth surface finish, and inherent electrical insulation provide added protection. Whether in humid, high-speed, or electrically sensitive environments, these couplings safeguard equipment while ensuring stable power transmission.

FAQ's of Nylon Coupling:

Q: How is the nylon coupling installed and what alignment tolerance should be maintained?

A: The nylon coupling is mounted using clamp or set screw connections for quick installation. During assembly, ensure the axial alignment tolerance does not exceed 1 mm and the angular alignment remains within 0.5, as this optimizes performance and reduces wear.

Q: What applications are suitable for these nylon couplings?

A: These couplings are ideal for power transmission systems, industrial machinery, and various drives requiring flexible connections. They are commonly used in automation equipment, pumps, compressors, and conveyor systems in manufacturing plants.

Q: When should these couplings be considered over metal-only alternatives?

A: Choose nylon couplings when electrical insulation between shafts is essential, or when vibration dampening and noise reduction are priorities. Their maintenance-free design also makes them preferable for installations where lubrication is impractical or undesirable.

Q: Where do the temperature and corrosion resistant properties benefit most?

A: The broad temperature range (-30C to +80C) and high corrosion resistance make these couplings suitable for indoor and mildly harsh industrial settings, including high-humidity or mildly corrosive environments where metal couplings may deteriorate quickly.

Q: What manufacturing and quality standards are adhered to in these couplings?

A: Our nylon couplings are produced via forging and machining or injection molding processes, conforming to DIN or ISO standards. Each unit undergoes rigorous quality control to ensure consistent performance and durability.

Q: How does the coupling's damping capability enhance machinery performance?

A: The nylon sleeve efficiently absorbs shocks and vibrations, which protects sensitive machine components, extends equipment life, and delivers a smoother, quieter operational experience even under demanding load and speed conditions.

Q: What are the benefits of using this coupling in power transmission systems?

A: These couplings offer reliable torque transmission up to 800 Nm, accommodate shaft misalignments, reduce maintenance requirements, ensure electrical isolation, and operate efficiently at speeds up to 6000 RPM-making them a top choice for modern industrial drives.
