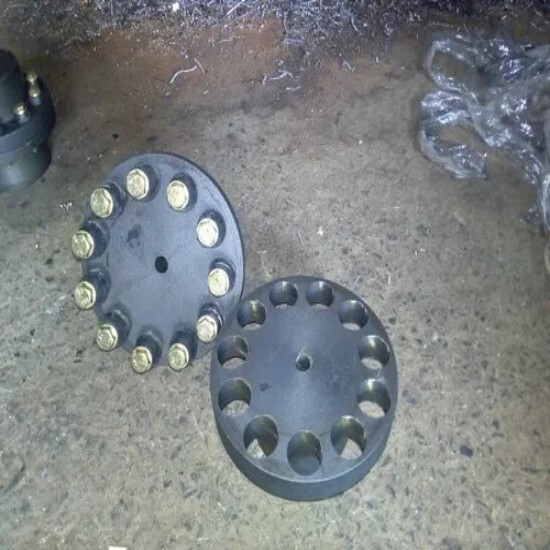

Pin & Bush Type Coupling

Get a Price/Quote

Pin & Bush Type Coupling Specification

Max. Speed
Up to 3600 RPM

Torque
High torque capacity varies with size

Head Code
Standard

Connection
Bolted connection

Bore
Customized as per requirement

Material
High-grade cast iron or mild steel

Structure
Pin and bush

Standard
IS 2693

Inner Diameter
Varies per specification

Outer Diameter
Varies per specification

Application
Power transmission in mechanical systems

Surface Treatment
Rust-proof coating

Technique
Precision machining

Shape
Round

About Pin & Bush Type Coupling

Pin & Bush Type Coupling:

Simple & Compact in Construction the Coupling is capable of transmitting high torques at maximum speeds. The flanges are manufactured with cast iron, grade 20 of I.S. 210. This type of coupling permits drive in either direction & requires neither lubrication nor adjustment after fitting. The flexible bushes remain unafftected by water, dust & atmospheric condition.
Available in Ex-stock OD - 3"

Specification :

SIZE	RATE	SIZE	RATE
3"	225=00	12"	4149=00
4"	294=00	13"	6828=00
5"	450=00	14"	7087=00
6"	674=00	15"	8495=00
7"	1073=00	16"	9680=00
8"	1387=00	18"	13478=00
9"	1969=00	20"	20375=00
10"	2665=00	21"	25940=00
11"	3801=00	22"	27940=00
		24"	38016=00
